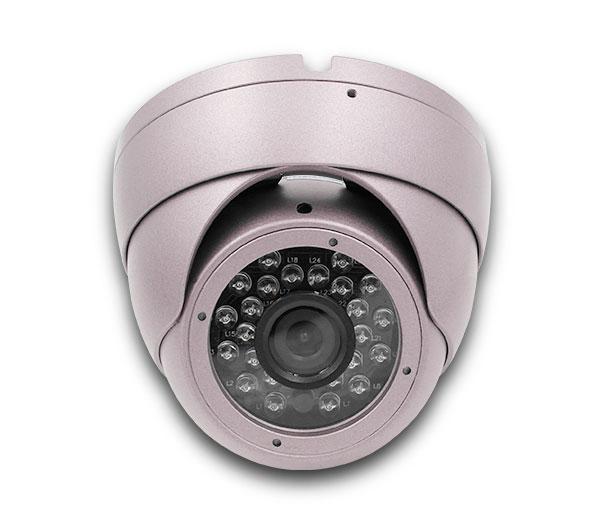

Camara JTiA-S609 (inside)

Características:

• NVP2431H + 1/3” CMOS AR0130 image sensor

• Metal-cased with standard fixed lens;
• Millions of high-resolution(1.3 Mega pixel);
• Audio fuction optional;
• High image quality and high low light performance
• Easy installation to ceiling or wall
• Support 12V DC ±10%,Low power consumption

Especificaciones:

Image Sensor: NVP2431H + 1/3” CMOS AR0130

TV System: PAL/NTSC

HD-Resolution: 1.3 Mega pixel

Lens optional: f3.6 / 2.8 mm

Effective Pixel Arrey: 1280H x 960 V

Min illumination: 0.01Lux @(F1.2,AGC ON)

S/N Ratio: More than 50 dB(AGC Off)

WDR: N/A

IR: 24PCS IR LED (850nm)

Infrared LED Range: 10m

Audio fuction: optional

horizontal angle of view: 90° (Diagonal)

Tilt Adjusting: 0-90 Degree

Power Supply: 12V DC ±10%，320mA

Dimensions: ø94 x 76 mm

Net Weight: 330 g

Weatherproof/Water Proof: N/A

Operational Temperature: -25 ~ +60 ° C

Operational humidity: 20 ~ 80%

vedio interface

Aircraft Round Connector Plug
