Características:
- NVP2431H + 1/3” CMOS AR0130 image sensor,1280X960=1.3MP Active pixels

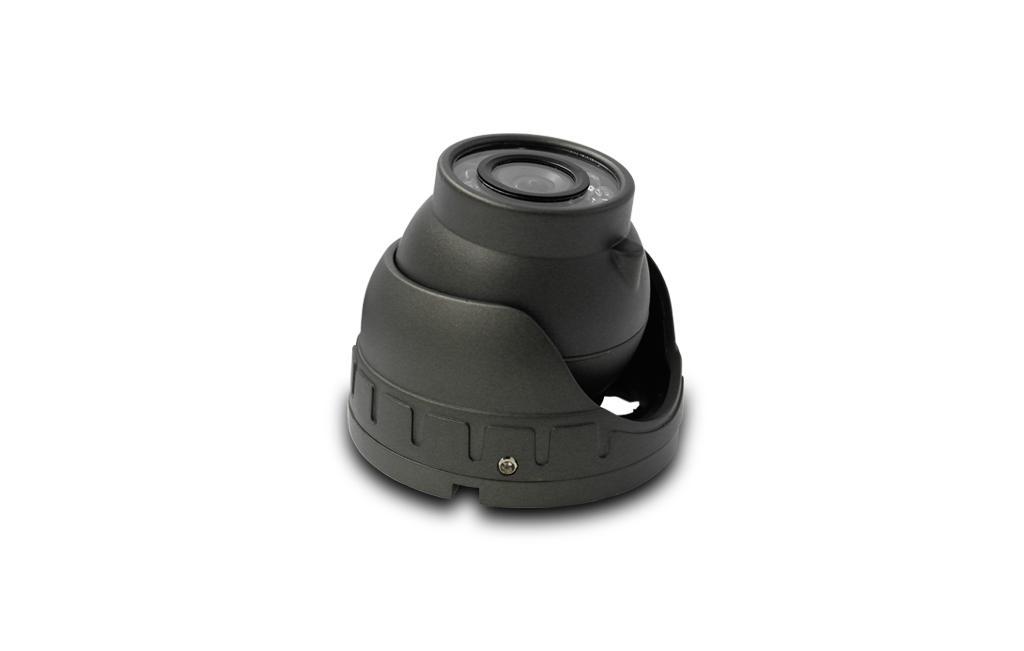

- Metal-cased mini housing with standard fixed lens
- 3.6 / 2.8 mm lens optional
- Support IR function,infrared LED range 10~15m
- Easy installation to ceiling or wall
- Support 12V DC ±10%,Low power consumption.
Especificaciones:
Image Sensor: NVP2431H + 1/3” CMOS AR0130
TV System: PAL/NTSC
Lens optional: 3.6 / 2.8 mm
Effective Pixel Arrey: PAL: 1280Hx960V; NTSC: 1280(H) x 960(V)
Min illumination: 0.01Lux @(F1.2,AGC ON)
S/N Ratio: More than 50 dB, (AGC Off)
WDR: N/A
IR &Infrared LED Range: 12PCS IR LED,15m
Audio fuction: Optional
Horizontal angle of view: 90° (D) for F3.6mm/115° (D) for F2.8mm
Work current: 160mA
Tilt Adjusting: 0-90 degree
Power Supply: 12V DC ±10%
Dimensions: ø68.8 x 59.2 mm
Net Weight: 180 g.
Weatherproof/Water Proof: N/A
Operational Temperature: -20 ~ +70 ° C
Operational humidity: 20%~80%
vedio interface: Aircraft Round Connector Plug
